| DIG1

DIG1

Digital Interconnect

Category: Tags: , , , , ,

Description

Digital Interconnect.

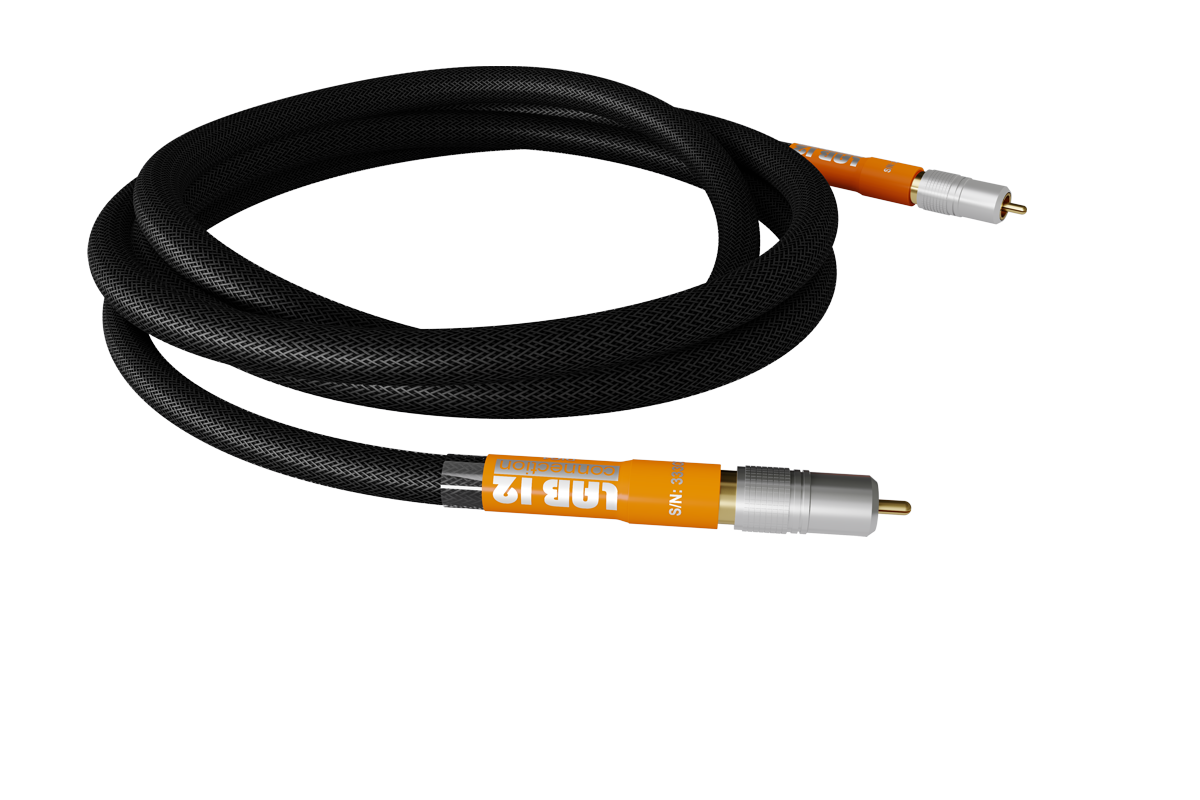

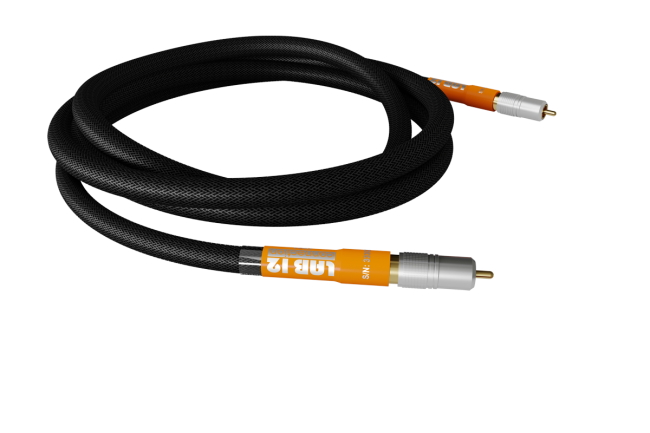

SPDIF 75 ohm coaxial with RCA connectors.

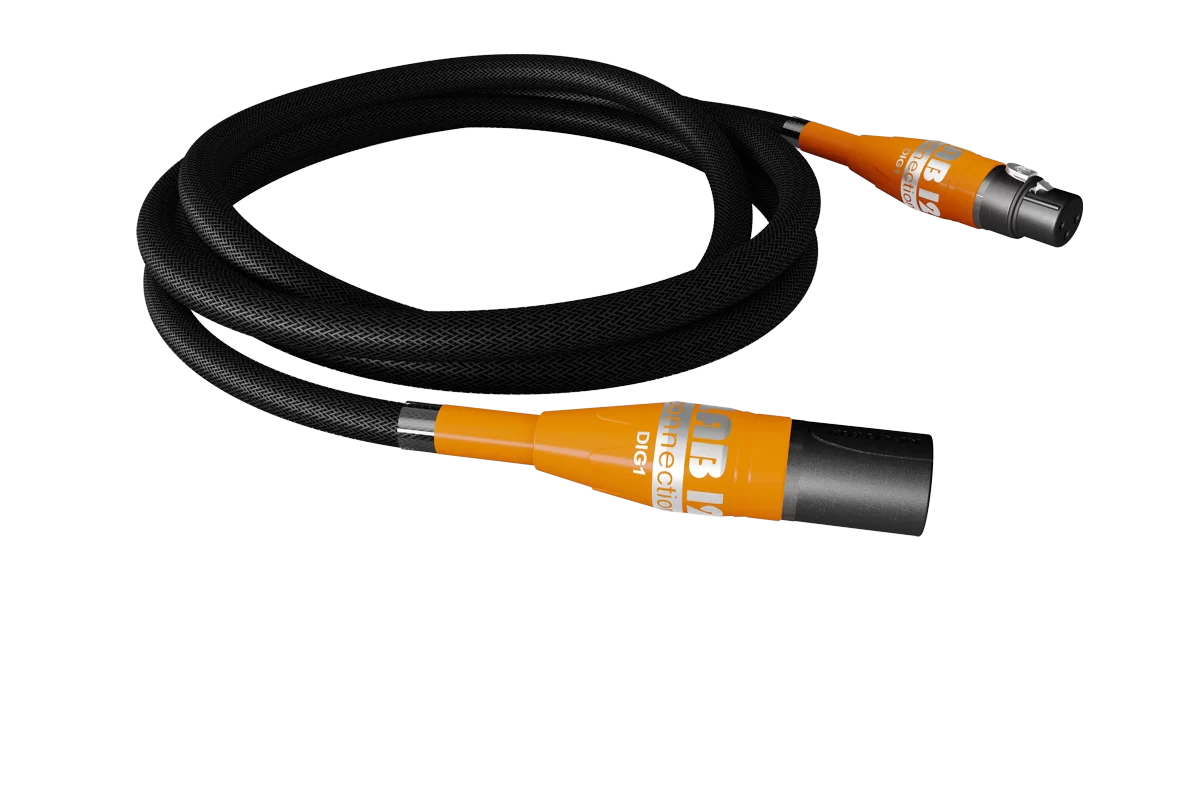

AES/EBU 110 ohm with XLR connectors.

AES/EBU XLR Specifications

  • Connectors: AES/EBU XLR (110 ohm)
  • Capacitance: 19,10 pF/ft
  • Resistance: 10,10 mΩ/ft
  • Inductance: 0,50 μH/ft
  • Delay: 1,12 ns/ft
  • Conductors Type: Stranded Copper
  • Insulation: Polyvinyl Chloride (Free of Phthalates)
  • Shielding: 4N Braided Copper Ultra High Conductive Shield
  • Metal: PCOFC (Pure Crystal Oxygen Free Copper)
  • Purity: 99,99997%

RCA or BNC Specifications

  • Connectors: RCA or BNC (75ohm)
  • Capacitance: 41,15 pF/ft
  • Resistance: 9,75 mΩ/ft
  • Inductance: 0,50 μH/ft
  • Delay: 1,12 ns/ft
  • Conductors Type: Stranded Copper
  • Insulation: Polyvinyl Chloride (Free of Phthalates)
  • Shielding: 4N Braided Copper Ultra High Conductive Shield
  • Metal: PCOFC (Pure Crystal Oxygen Free Copper)
  • Purity: 99,99997%
